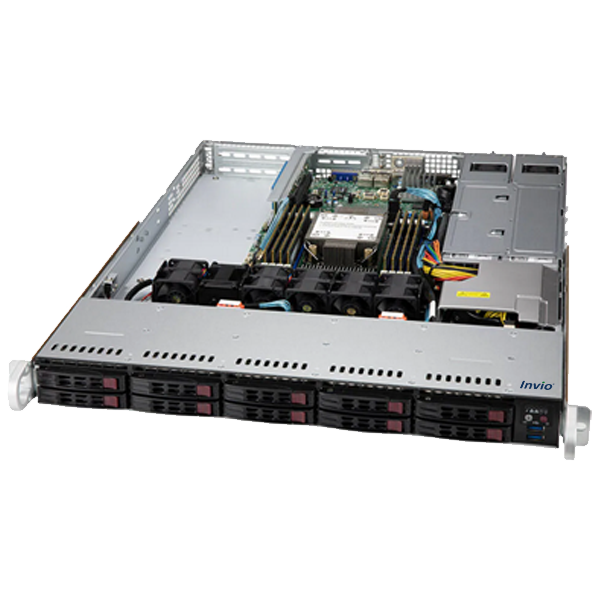

NAMO N1001-I-110

Supports 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, Single Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 165W TDP
Intel C621® Chipset
8 DIMM slots
1 x PCIe Gen3 x16 slot
10 x 2.5" hot-swap SATA/SAS drive bays
3 heavy duty counter-rotation PWM fan(s)
500W/600W Redundant power supply Platinum level (92-94%)

Processor
1 X 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, Single Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 165W TDP
System Memory
Memory Capacity	8 DIMM slots; DDR4 memory supported Up to 2TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-2933MT/s Up to 1TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake Only) 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Expansion Slots
PCI-Express	1 x PCIe Gen3.0 x16 slot
On-Board Devices
Chipset	Intel® C621 chipset
Network Connectivity	2 x 1Gb/s LAN ports 1 dedicated IPMI management LAN por
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2500 BMC

Input / Output
USB	Upto 4 x USB 3.0 ports
Video	Output: 1 VGA
Power Supply
500W/600W Redundant power supply Platinum level (92-94%)
Chassis
Form Factor	1U Rackmount
Security
Hardware	Trusted Platform Module (TPM) 2.0 Intrusion Switch (Optional)
RAID Options
SATA: Intel® SATA RAID 0/1/10/5 Onboard VROC key header
System Cooling
Fans	3 counter-rotating 40x40x56mm Fan(s)
Drive Bays
10 x Hot-swap 2.5" SAS/SATA drive bay(s)
